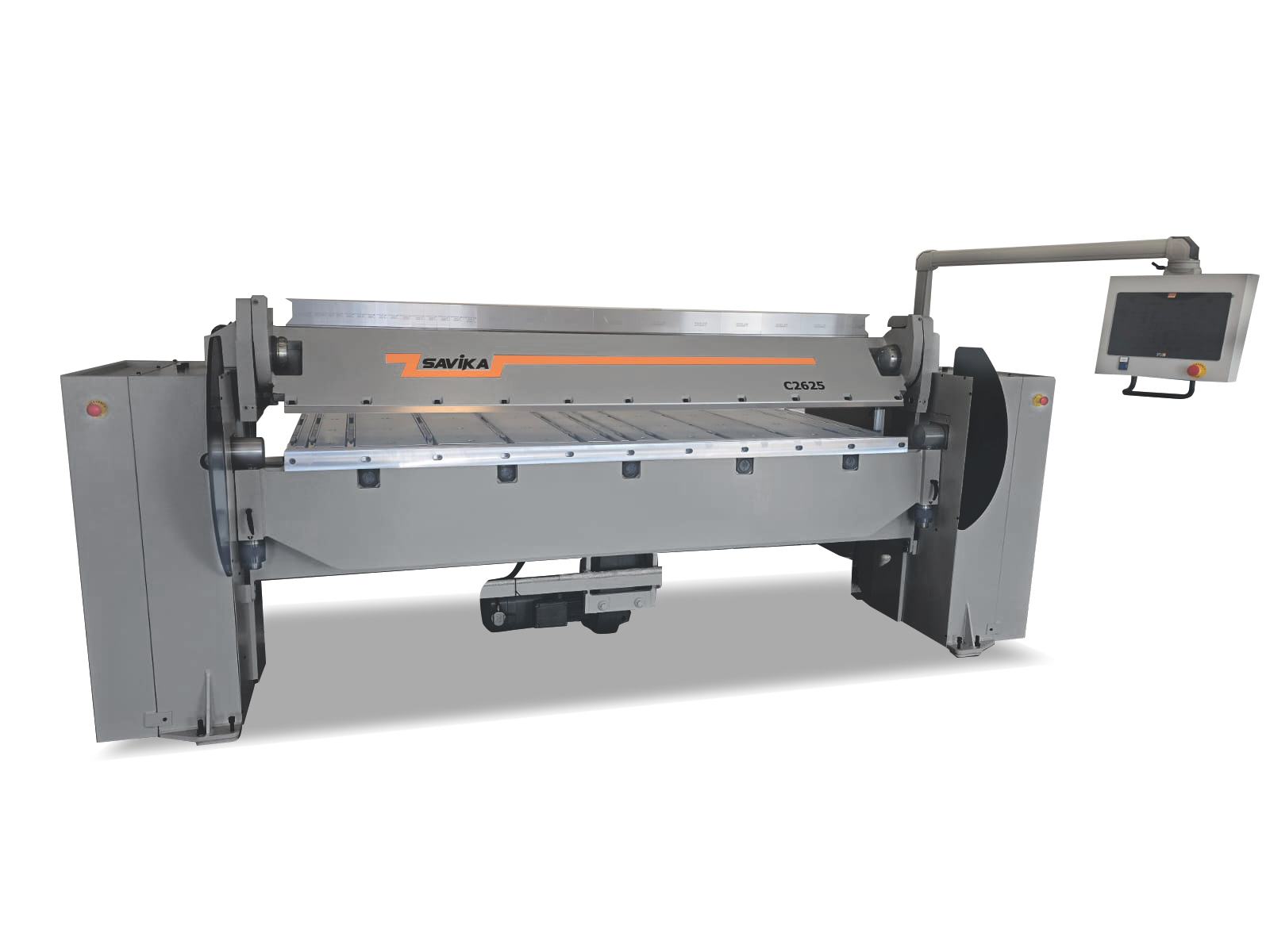

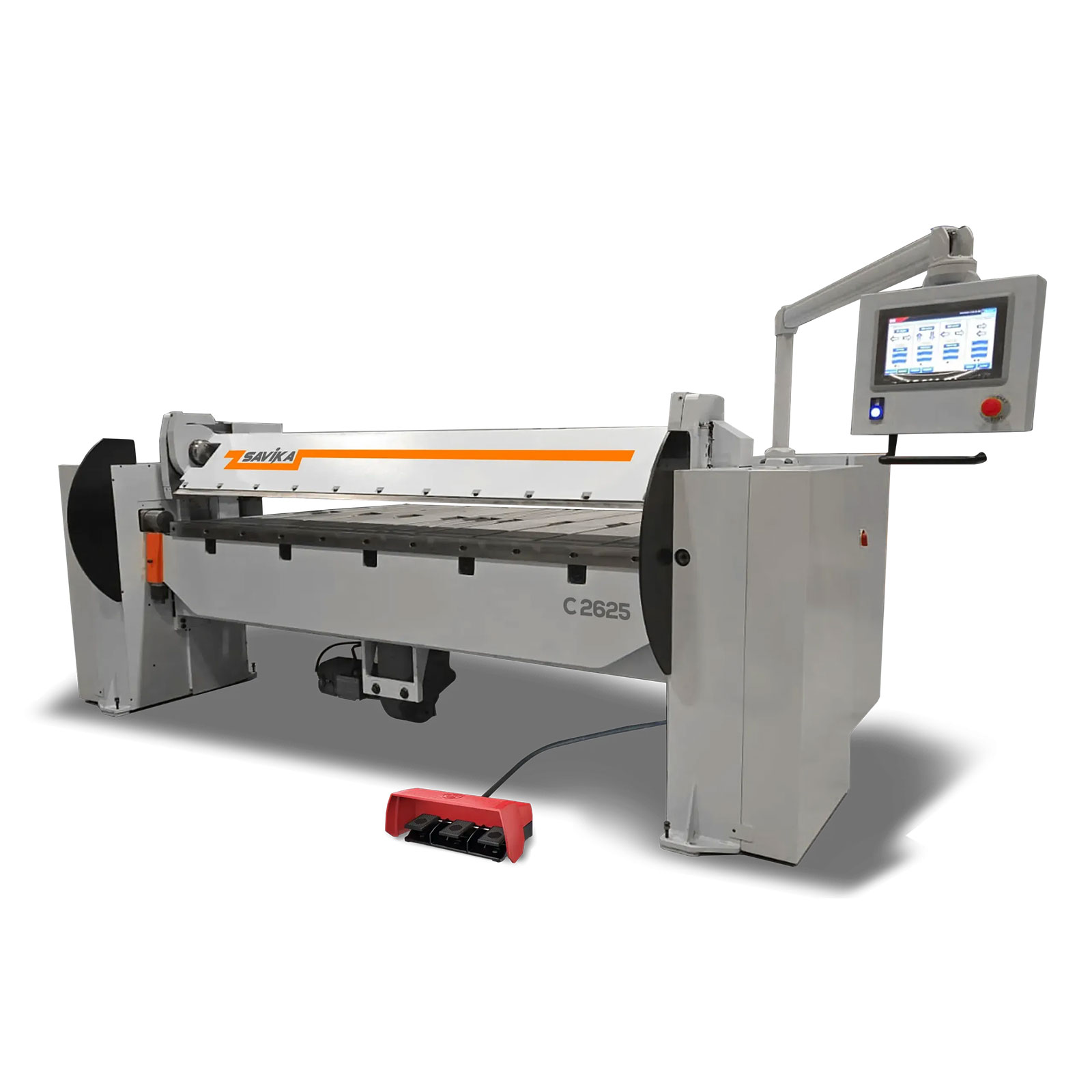

SAVIKA C2625 Combi CNC Folder

The SAVIKA C-model is the double tool version in the range of Savika folders. It is even more solidly constructed, which means greater bending capacity. With a range of control systems and backgauge options as well as a wide selection of rails, the C-model can be fully customised to suit your wishes.

Category Savika Combi Benders Brand: Savika

Precision, Durability & Efficiency

Revolutionizing Sheet Metal Folding

The Savika Folding Machine is designed for professionals in the sheet metal industry, delivering exceptional precision, durability, and efficiency. With cutting-edge technology and a robust construction, Savika is the ideal choice for industrial and custom metal fabrication.

Why Choose Savika?

Savika stands out in the market by combining precision engineering, advanced technology, and superior build quality.

BENEFITS

Rotating combi beam solution with segmented box tools
Strong structure for high quality bends
Time-saving through 1-man operation Minimal maintenance effort
Easy software for fast programming

CONTROLS

Savika machines comes with 2 types of controller

LBL – Line by line programming 12 “ touchscreen
2D graphic – graphic CNC software 15 “ touchscreen

SERIES EQUIPMENT

The following series equipment is possible depending on the version (working length/control): Sharp rail 30° R 1 mm offset

Motorized backgauge 3 – 1000mm Insert rail 7/10 mm
Insert rail 25 mm Fotpedal 3 pedal
Ball transfers in backgauge table

ADD-ONS – OPTIMISE YOUR SAVIKA

The following add-ons are possible depending on the version (working length/control): Combi beam with segmented box tools

3 – 1550 mm motorized backgauge with 3 stations (under 3 sec for positioning)
2D Graphic software
Motorized foldingbeam adjustment Squaring arm on backgauge side
U shape backgauge L shape backgauge Radius rails

TECHNICAL DATA

MODEL	Combi beam		C2625	C3220	C4115
WORKING LENGTH		mm	2600	3200	4100
OUTPUT	Steel (400N/mm²)	mm	2,50	2,00	1,50
	Stainless steel (600N/mm²)mm	mm	1,75	1,25	0,90
	Cooper (300N/mm²)	mm	2,50	2,00	1,50
	Aluminium (250N/mm²)	mm	3,50	2,00	1,50
	Zinc (150N/mm²)	mm	3,50	3,00	1,00
DIMENSIONS	Length	mm	3820	4420	5320
	Depth	mm	2270	2270	2270
	Overall height	mm	1810	1810	1810
WEIGHT		kg	3170	3500	4210
CLAMPING BEAMS	Opening height	mm	140	140	140

Ball transfer in backgauge
Quick lock on insert rails for fast change of tools
Multistation 3 stations backgauge with feathersprings in front for making no marks from underrail
Rotating upperbeam for quick change between standard and boxtools ( under 10 sec to change)
Box tools 100mm high freespace on C-model
Strong folding beam for the best folding result
Motor in middle for upperbeam give exact same force in both sides of the machine and more accurate folding.
Customizable table on the back with expansion possibilities.
