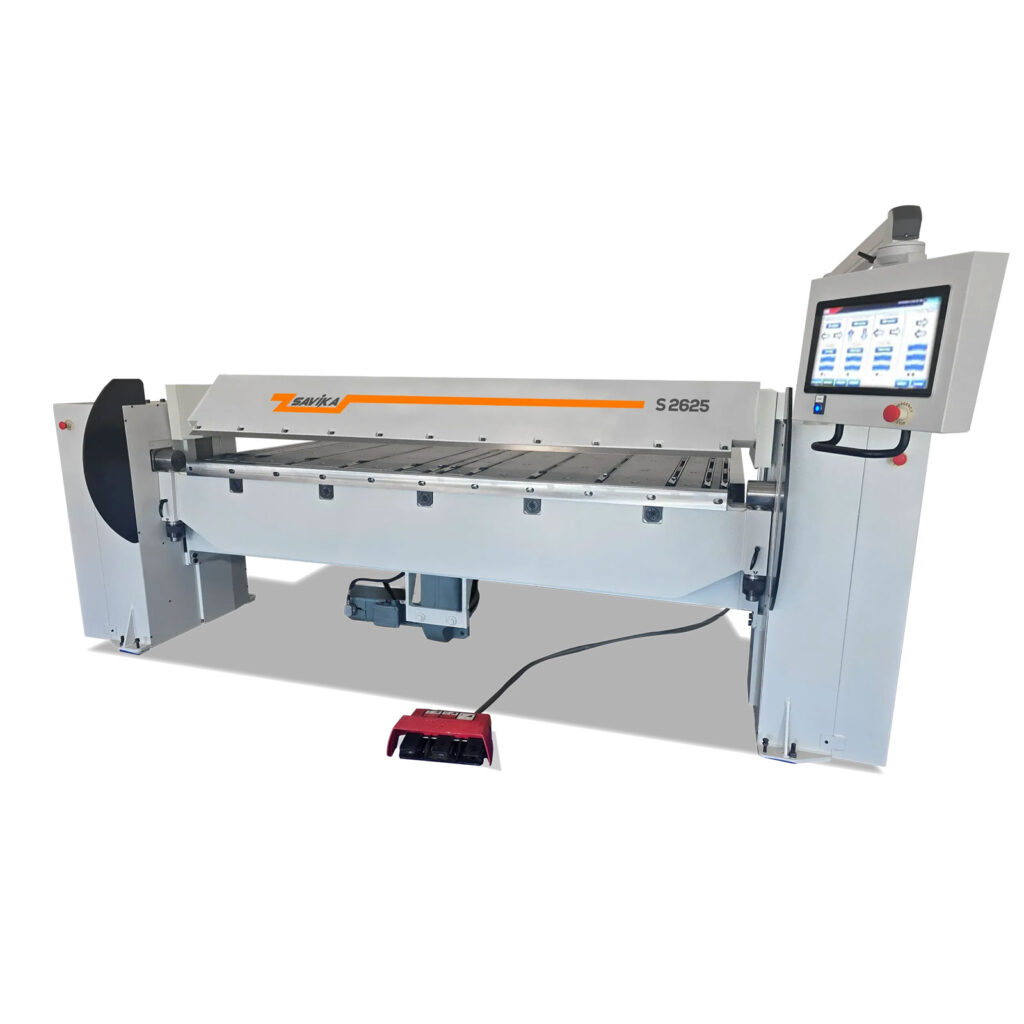

Straight Single Beam S Series
CNC FOLDER
- Straight Single Beam enables clean and precise bends
- Rigid welded and assembled frame enables long lifecyle & accuracy
- Fast 3 Level Enabled Servo Backgauges
- Backgauge finger that closes up to 5mm enables narrow bendings
- 3 Foot operating pedal for easy use
- Centralized Clamping Motor gives assured equal tork and strength on both sides
- Servo backgauge to serve 600mm distance in less than 2 seconds
SAVIKA CNC Folding Machines
With a range of control systems and backgauge options as well as a wide selection of rails, the Savika S&C model can be fully customised to suit your wishes.
Easy Crowning
Although our bending beam is perfectly pinching the material we have a great option that gives you flexible results with manual crowning.
Consistent Setup
Quick-lock mechanism for the bottom blade Effortless manual crowning adjustment Simple control of lower beam height and setback
FLEXIBLE OPTIONS
Large table also with U or L Shape configuration options enabled
Revolutionizing Sheet Metal Folding
The Savika Folding Machine is designed for professionals in the sheet metal industry, delivering exceptional precision, durability, and efficiency. With cutting-edge technology and a robust construction, Savika is the ideal choice for industrial and custom metal fabrication.
Precision, Durability & Efficiency
Savika stands out in the market by combining precision engineering, advanced technology, and superior build quality.
Straight Single Beam S Series Benefits
- Straight Single Beam enable clean bending without a trace
- Strong structure for high quality bends
- Time-saving through 1-man operation Minimal maintenance effort
- Easy software for fast programming
CONTROLS
Savika machines comes with 2 types of controller:
– LBL – Line by line programming 12 “ touchscreen
– 2D graphic CNC software 15 “ touchscreen
TECHNICAL DATA
| MODEL | Single Beam | S 2625 | S 3220 | S 4115 | |
| WORKING LENGTH | mm | 2600 | 3200 | 4100 | |
| OUTPUT | Steel (400N/mm²) | mm | 2,50 | 2,00 | 1,50 |
| Stainless steel (600N/mm²)mm | mm | 1,75 | 1,25 | 0,90 | |
| Cooper (300N/mm²) | mm | 2,50 | 2,00 | 1,50 | |
| Aluminium (250N/mm²) | mm | 3,50 | 2,00 | 1,50 | |
| Zinc (150N/mm²) | mm | 3,50 | 3,00 | 1,00 | |
| DIMENSIONS | Length | mm | 3820 | 4420 | 5320 |
| Depth | mm | 2270 | 2270 | 2270 | |
| Overall height | mm | 1810 | 1810 | 1810 | |
| WEIGHT | kg | 3170 | 3500 | 4210 | |
| CLAMPING BEAMS | Opening height | mm | 140 | 140 | 140 |
STANDARD EQUIPMENT in Straight Single Beam
The following equipment is possible depending on the version (working length/control):
- Straight Single Beam : Sharp Rail 30° R 1 mm offset
- Motorized backgauge 3 – 1000mm
- Insert rail 7/10 mm
- Insert rail 25 mm
- Fotpedal 3 pedal
- Ball transfers in backgauge table
ADD-ONS – OPTIMISE YOUR SAVIKA
The following add-ons are possible depending on the version (working length/control):
- Combi beam with segmented box tools
- 5 – 1550 mm motorized backgauge with 3 stations (under 3 sec for positioning)
- 2D Graphic software
- Motorized folding beam adjustment
- Squaring arm on backgauge side
- U shape backgauge L shape backgauge
- Radius rails
Safety buttons on each side of the frames to reach from any side
Large table also with U or L Shape configuration options enabled
Quick lock for Bottom Blade & Easy manual crowning setting
Standard safe guards on sides of bending area to protect operator
Easy adjustment of lower beam height and setback
Easily moving acrobat arm for controller with 1200mm radius enables to work in the back
3 Pedals standard foot controls enabled
