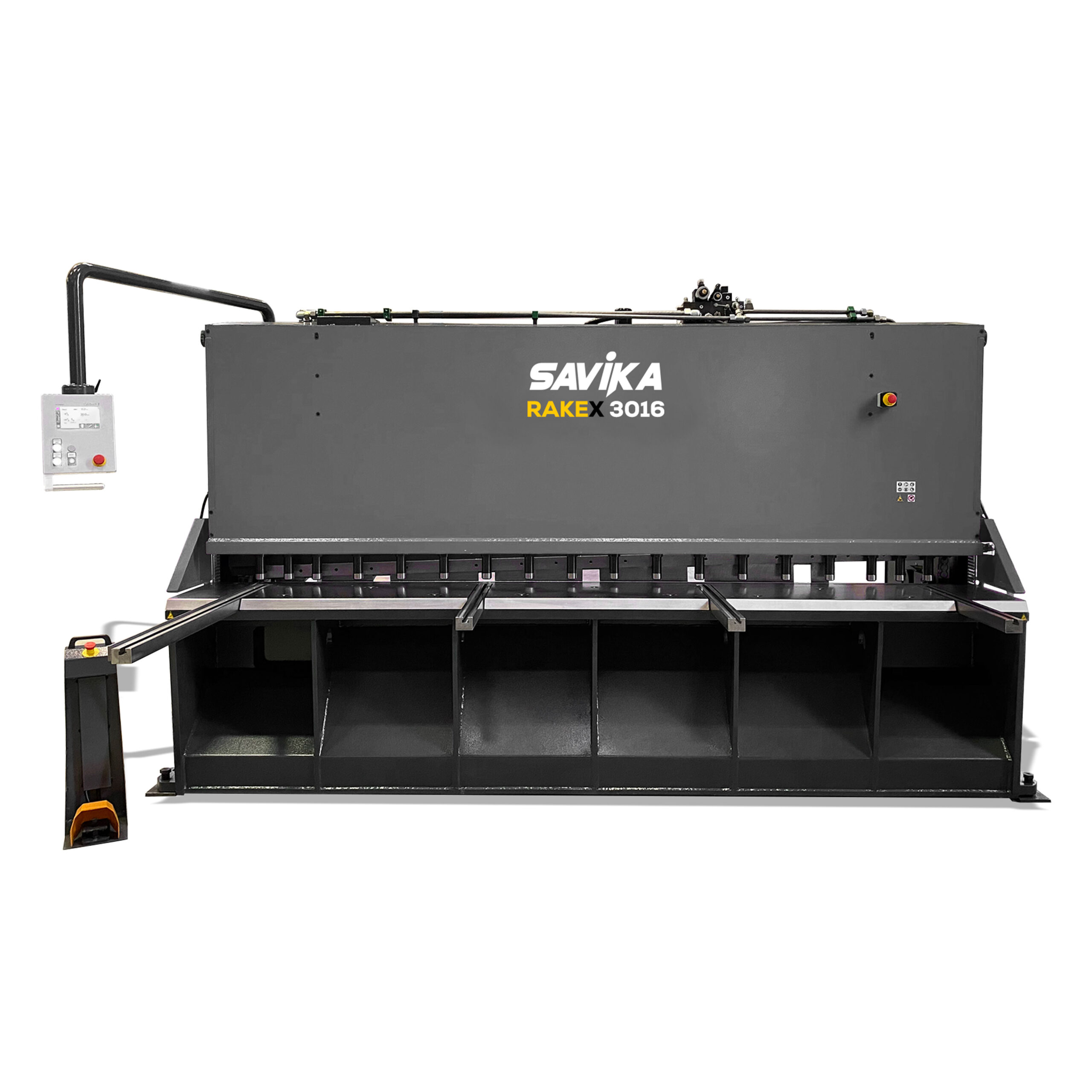

RAKE-X Angle Rake Hydraulic Shears
Angle Rake (Guillotine) Shears cut with a straight vertical motion and allow adjustable cutting angles, offering higher accuracy, efficiency, and versatility for different material thicknesses
Standards
- Motor-driven back gauge with two speeds A.C. motor and recirculation ball screws and linear rod guides.
- Electronic programmer with microprocessors Touchscreen Cybelec Cybtouch 8G for automatic control of:
- cutting angle
- blade gap
- Hold down pressure
- cutting length
- programming of back gauge
- stroke counter
- Motorised blade distance adjustment with dimensional mechanical control.
- Spherical balls in table for easy sheet movement (Transfer balls)
- Stainless steel table tops
- Sheet slider at rear
- Side squaring arm 1500mm
- Standard extension arms 1000mm
- Cutting light & wire
- Induction hardened and ground Blades for mixed cutting
- Control foot pedal
- Instruction and maintenance manual
- Machine according to standard 2006/42/CE and CE certificate
Key Advantages
Built to last, trusted for decades
Rigid frame construction and stable assembly ensure a long service life for our RAKE-X Series—reliability you can trust for decades.
Strong & User-Friendly
Wide working range without blade gap adjustments, ensuring effortless operation.
MORE QUALITY LESS SERVICE
MORE QUALITY LESS SERVICE
Pneumatic sheet support with 1 or 2 step selections with extended arms reaching to the blades
Hydraulic fingers hold down feature as standard.
Liftable protection frame
TECHNICAL DATA
| Angle Rake Models | RAKEX 3006 | RAKEX 3010 | RAKEX 3013 | RAKEX 3016 | RAKEX 3020 |
| Capacity (length x cutting capacity ) | 3060×6 | 3060×10 | 3060×13 | 3060×16 | 3060×20 |
| Cutting performance for material tensile strength 400 N/mm² | 6 | 10 | 13 | 16 | 20 |
| Cutting performance for material tensile strength 600 N/mm² | 4 | 8 | 10 | 13 | 16 |
| Rear stop speed | 150 | 150 | 150 | 150 | 150 |
| Cutting angle (min/max) | 0,5 °- 2° | 1 °- 2,5° | 1 °- 2,5° | 1 °- 2,5° | 1 °- 2,5° |
| Max. strokes for full cutting length (min/max) | 20-25 | 15-24 | 14-20 | 13-24 | 10_22 |
| Number of hold-down units | 18 | 13 | 13 | 12 | 12 |
| Oil tank capacity | 310 | 280 | 280 | 580 | 650 |
| Dimensions and weights | |||||
| Table length | 3580 | 3600 | 3640 | 3680 | 3700 |
| Table depth | 540 | 670 | 700 | 720 | 700 |
| Table height | 860 | 900 | 900 | 900 | 950 |
| Machine body depth | 1710 | 2200 | 2300 | 2850 | 2600 |
| Length approx. | 3900 | 4200 | 4200 | 4180 | 3800 |
| Width/depth approx.(with Back Fence and Front arms) | 3900 | 4150 | 4250 | 4800 | 4550 |
| Height approx. | 2100 | 2300 | 2350 | 2800 | 2800 |
| Weight approx. | 10000 | 13550 | 16200 | 19550 | 27050 |
| Electric Data | |||||
| Drive motor output | 11 | 22 | 30 | 37 | 45 |
| Backgauge Stroke | 1000 | 1000 | 1000 | 1000 | 1000 |
