COMBI BEAM CNC FOLDER MACHINE
Precision, Durability & Efficiency
The Combi Double Tool version from Savika folders, is even more solidly constructed, which means greater bending capacity. Rotating and Straight Beam CNC Folding in one machine.
- Rigid welded and assembled frame enables long lifecyle & accuracy
- Fast COMBI Beam Rotates in less than 10 seconds (only on C Models)
- Fast 3 Level Enabled Servo Backgauges
- Backgauge finger that closes up to 5mm enables narrow bendings
- 3 Foot operating pedal for easy use
- Easy tool change system for segmented top blades (only on C Models)
- Centralized Clamping Motor gives assured equal tork and strength on both sides
- Servo backgauge to serve 600mm distance in less than 2 seconds
Speedy Combi Beam
The Combi Beam rotates lesser than 10 seconds enable you fast production and control
Consistent Setup
Quick-lock mechanism for the bottom blade Effortless manual crowning adjustment Simple control of lower beam height and setback
FLEXIBLE OPTIONS
Large table also with U or L Shape configuration options enabled

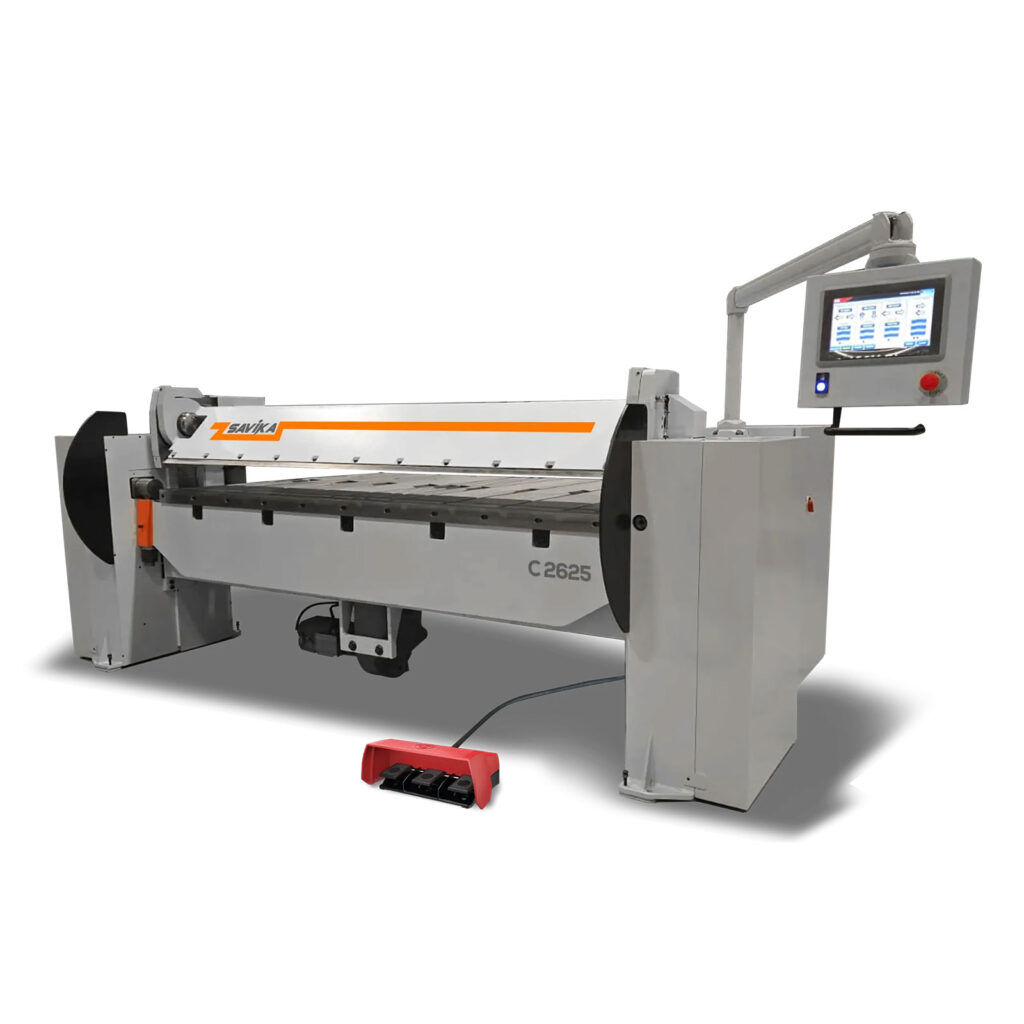

SAVIKA Combi Beam CNC Folding Machine
The SAVIKA C-model is the double tool version in the range of Savika folders. It is even more solidly constructed, which means greater bending capacity. With a range of control systems and backgauge options as well as a wide selection of rails, the C-model can be fully customised to suit your wishes.
Revolutionizing Sheet Metal Folding
The Savika Folding Machine is designed for professionals in the sheet metal industry, delivering exceptional precision, durability, and efficiency. With cutting-edge technology and a robust construction, Savika is the ideal choice for industrial and custom metal fabrication.
Why Choose Savika?
Savika stands out in the market by combining precision engineering, advanced technology, and superior build quality.
BENEFITS
- Rotating combi beam solution with segmented box tools
- Strong structure for high quality bends
- Time-saving through 1-man operation Minimal maintenance effort
- Easy software for fast programming
CONTROLS
Savika machines comes with 2 types of controller:
– LBL – Line by line programming 12 “ touchscreen
– 2D graphic CNC software 15 “ touchscreen
TECHNICAL DATA
| MODEL | Combi beam | C2625 | C3220 | C4115 | |
| WORKING LENGTH | mm | 2600 | 3200 | 4100 | |
| OUTPUT | Steel (400N/mm²) | mm | 2,50 | 2,00 | 1,50 |
| Stainless steel (600N/mm²)mm | mm | 1,75 | 1,25 | 0,90 | |
| Cooper (300N/mm²) | mm | 2,50 | 2,00 | 1,50 | |
| Aluminium (250N/mm²) | mm | 3,50 | 2,00 | 1,50 | |
| Zinc (150N/mm²) | mm | 3,50 | 3,00 | 1,00 | |
| DIMENSIONS | Length | mm | 3820 | 4420 | 5320 |
| Depth | mm | 2270 | 2270 | 2270 | |
| Overall height | mm | 1810 | 1810 | 1810 | |
| WEIGHT | kg | 3170 | 3500 | 4210 | |
| CLAMPING BEAMS | Opening height | mm | 140 | 140 | 140 |
STANDARD EQUIPMENT
The following equipment is possible depending on the version (working length/control):
- GOAT FEET Segmented Tools + Sharp rail 30° R 1 mm offset
- on Upper Beam Motorized backgauge 3 – 1000mm
- Insert rail 7/10 mm
- Insert rail 25 mm
- Fotpedal 3 pedal
- Ball transfers in backgauge table
ADD-ONS – OPTIMISE YOUR SAVIKA
The following add-ons are possible depending on the version (working length/control):
- Combi beam with segmented box tools
- 5 – 1550 mm motorized backgauge with 3 stations (under 3 sec for positioning)
- 2D Graphic software
- Motorized folding beam adjustment
- Squaring arm on backgauge side
- U shape backgauge L shape backgauge
- Radius rails
Safety buttons on each side of the frames to reach from any side
Segmented High Quality special tools
Large table also with U or L Shape configuration options enabled
Quick lock for Bottom Blade & Easy manual crowning setting
Standard safe guards on sides of bending area to protect operator
Easy adjustment of lower beam height and setback
Easily moving acrobat arm for controller with 1200mm radius enables to work in the back
3 Pedals standard foot controls enabled
