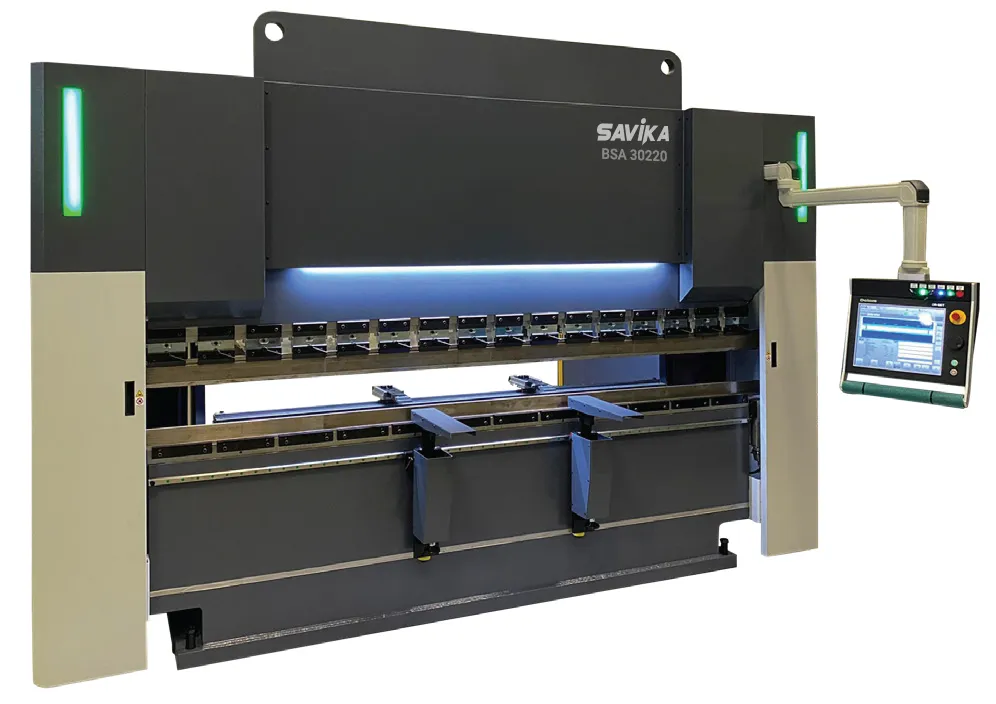

X-BRAKE SERIES
CNC HYDRAULIC PRESSBRAKES
- Manual / Automatic central lubrication
- Backgauge X travel 1000mm
- Finger Blocks (Standard.)
- Add. Front arm / Oil Coolant / Oil Heater
- Air condition for electrical box
- Parking area / Second Foot pedal
- PROTECTIVE SLIDERS ON RAM SURFACE
- MARINE WRAPPING + CORROSION PROTECTION PACKING
6 axis Tower Backgauges
We can extend the skills with our flexible tower solutions depending on your applications
Select any CNC Interface
We offer the industry’s most recognized CNC press brake software and the official interfaces from their respective manufacturers.
Clamping Options
We provide the most preferred clamping options, fully enabled for seamless tooling setup.
Selective Safety
From FIESSLER to AKASA, AKAS II, DSP, and beyond — all preferred safety options are available for maximum convenience.
Our X-BRAKE Series has a flexible design. It can be equipped according to your requirements, from different backgauge options, increased daylight opening, sheet following arms. Easy to use cnc controls with different screen options. Well known hydraulic systems used for an accurate servo control. Robust frame construction optimised to allow the components fitted on the machine to give their utmost performance.
FEATURES
Robust frame construction optimised to allow the components fitted on the machine to give their utmost performance. Automatic cnc crowning of the beam positioned for the maximum effectiveness for each individual machine. 2, 4, 5 and 6 axis backgauges. Different clamping options…
OPTIONS
- Standard 2 axis backgauge X-R with manual Z axis
- Five axis backgauge X-R-Z1-Z2-X3
- Modular backgauge 6 axis X1-R1-Z1 / X2-R2-Z2
- Led lighting on front and back at the working areas
- Fast clamping systems
- Safety system with motorised movement
- Adaptive laser angle correction
- Manual central lubrication
- Automatic central lubrication
- Backgauge X travel 1000mm
- Finger Blocks (Standard.)
- Add. Front arm (each one)
- Oil Coolant
- Oil Heater
- Air condition for electrical box
- Parking area
- Second Foot pedal
- PROTECTIVE SLIDERS ON RAM SURFACE
TECHNICAL DATA
| XBRAKE MODEL | 1340 | 1360 | 2160 | 21100 | 25100 | 25135 | 31100 | 31135 | 31175 | |
| Length (product) approx. | mm | 2400 | 2400 | 3100 | 3100 | 3550 | 3550 | 4220 | 4220 | 4250 |
| Width/depth (product) approx. | mm | 1550 | 1550 | 1550 | 1820 | 1820 | 1850 | 1820 | 1850 | 2100 |
| Height (product) approx. | mm | 2350 | 2350 | 2350 | 2550 | 2550 | 2550 | 2550 | 2550 | 2950 |
| Net weight approx. | kg | 3350 | 3700 | 4200 | 6750 | 7300 | 7650 | 8400 | 8750 | 13000 |
| Drive motor output | kW | 4 | 7.5 | 7.5 | 11 | 11 | 15 | 11 | 15 | 15 |
| Press force | t | 40 | 60 | 65 | 100 | 100 | 135 | 100 | 135 | 175 |
| Bending length | mm | 1300 | 1300 | 2070 | 2070 | 2550 | 2550 | 3150 | 3150 | 3150 |
| Stand passageway | mm | 1000 | 1050 | 1600 | 1600 | 2100 | 2100 | 2600 | 2600 | 2600 |
| Installation height | mm | 380 | 380 | 380 | 445 | 445 | 445 | 445 | 445 | 455 |
| Stroke | mm | 200 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 250 |
| Rapid mode | mm/s | 120 | 120 | 140 | 160 | 160 | 160 | 160 | 160 | 160 |
| Bending speed | mm/s | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 | 1–10 |
| Retraction | mm/s | 140 | 140 | 140 | 100 | 100 | 100 | 100 | 100 | 100 |
| Reach depth | mm | 300 | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 |
| Rear stop | mm | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Table height | mm | 930 | 930 | 930 | 930 | 930 | 930 | 930 | 930 | 930 |
| Table width | mm | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Number of support brackets | pcs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Rear stop finger | pcs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| X axis stroke | mm | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 |
| X axis speed | mm/s | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| R axis stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Oil tank capacity | l | 110 | 110 | 110 | 230 | 230 | 230 | 230 | 230 | 230 |
| XBRAKE MODEL | 31220 | 31320 | 41175 | 41220 | 41320 | 41400 | 61220 | 61320 | 61400 | |
| Length (product) approx. | mm | 4250 | 4400 | 5250 | 5250 | 5400 | 5500 | 7500 | 7500 | 7500 |
| Width/depth (product) approx. | mm | 2100 | 2250 | 1950 | 2100 | 2250 | 2550 | 2200 | 2350 | 2550 |
| Height (product) approx. | mm | 2950 | 3350 | 2850 | 2950 | 3350 | 3500 | 3100 | 3350 | 3500 |
| Net weight approx. | kg | 19500 | 17500 | 13750 | 16500 | 22250 | 26750 | 25600 | 35500 | 38500 |
| Drive motor output | kW | 18.5 | 22 | 15 | 18.5 | 22 | 30 | 18.5 | 22 | 30 |
| Press force | t | 220 | 320 | 175 | 220 | 320 | 400 | 220 | 320 | 400 |
| Bending length | mm | 3150 | 3150 | 3700 | 3700 | 4100 | 4100 | 6100 | 6100 | 6100 |
| Stand passageway | mm | 2600 | 2600 | 3150 | 3150 | 3600 | 3600 | 5600 | 5600 | 5600 |
| Installation height | mm | 525 | 630 | 455 | 525 | 630 | 630 | 525 | 630 | 630 |
| Stroke | mm | 275 | 350 | 250 | 275 | 350 | 350 | 275 | 350 | 350 |
| Rapid mode | mm/s | 140 | 120 | 160 | 140 | 120 | 120 | 120 | 120 | 120 |
| Bending speed | mm/s | 1–10 | 1–9 | 1–10 | 1–10 | 1–9 | 1–9 | 1–10 | 1–9 | 1–9 |
| Retraction | mm/s | 100 | 90 | 100 | 100 | 90 | 80 | 100 | 90 | 80 |
| Reach depth | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Rear stop | mm | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 | 1010 |
| Table height | mm | 930 | 930 | 930 | 930 | 930 | 960 | 1020 | 960 | 960 |
| Table width | mm | 90 | 90 | 60 | 90 | 90 | 90 | 90 | 90 | 90 |
| Number of support brackets | pcs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Rear stop finger | pcs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| X axis stroke | mm | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 | 5 – 650 |
| X axis speed | mm/s | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| R axis stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Oil tank capacity | l | 300 | 360 | 230 | 300 | 360 | 500 | 300 | 360 | 500 |
