SWP Welding Positioners

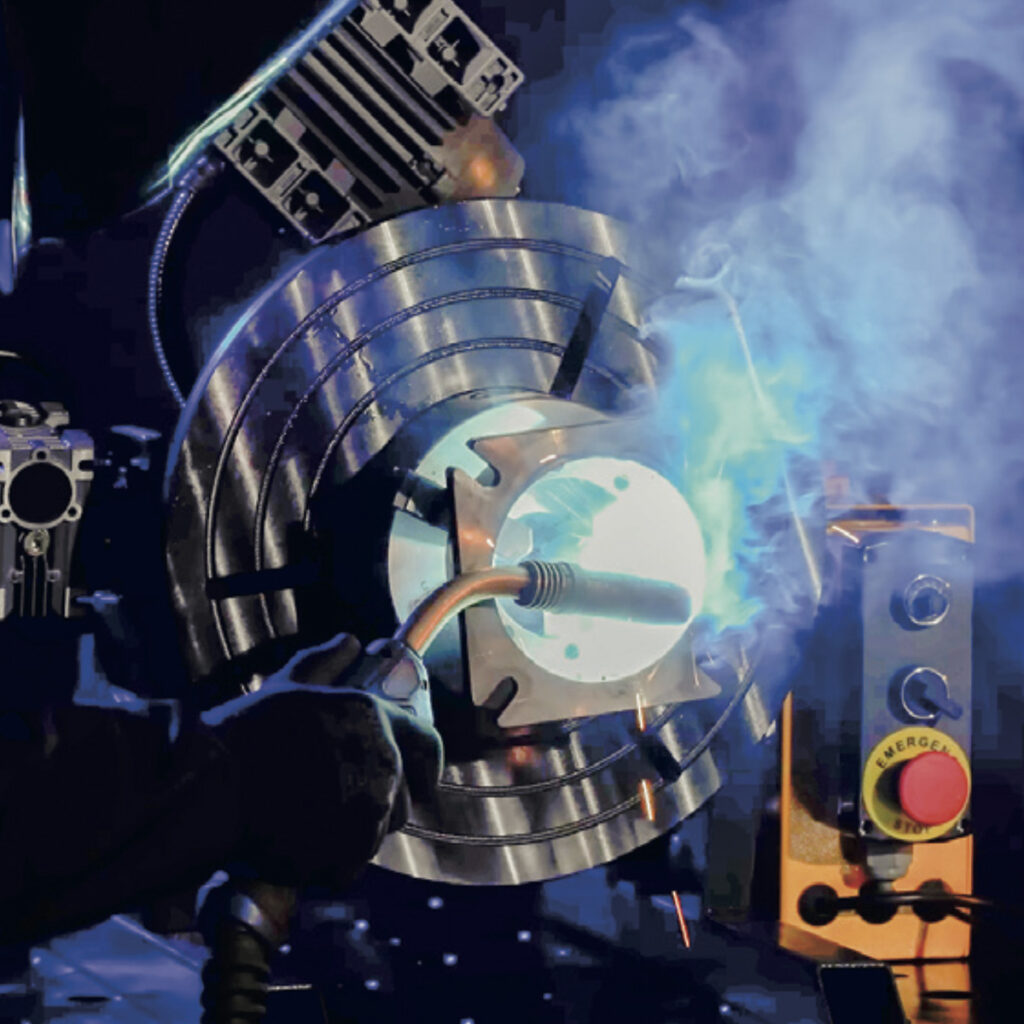

Rotary portable welding positioner machines are compact devices that rotate and tilt workpieces during welding, allowing welders to maintain the optimal position. They improve weld quality, efficiency, and safety by enabling smooth 360° rotation and adjustable angles, often controlled by foot pedals or speed knobs.

Standard Accessories

  • Easy positioning of part due to the adjustable tilt angle
  • Easy welding operation due to adjustable turning speed
  • Standard foot pedal
  • Optional Ø160 or Ø200 lathe chuck
  • A custom work plate suitable for welding equipment can be used.

TECHNICAL  DATA

Model SWP 100SWP 300
Nominal load capacityKg100300
Horizontal load capacityKg50150
Rotation speedrpm1,30 – 71 – 5,5
Tray rotation angle°360360
The direction of tilt Right-LeftRight-Left
Tilt angle°12090
Input powerkW/V50/22050/220
Turntable rotation motorkW0,250,37
Table diametermm350480
Connection channels M10x12M10x12
Dimensionsmm550x650x370640x740x550
Weightkg4595
